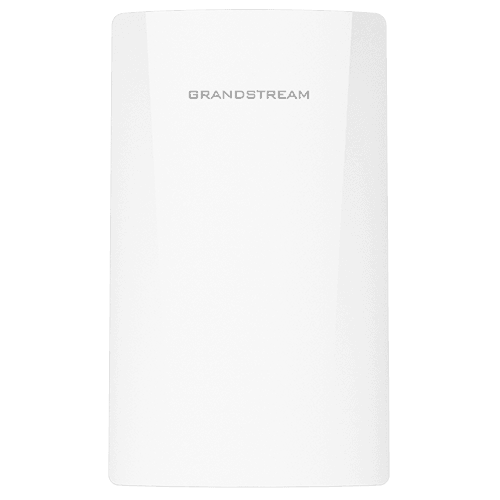

GWN7605CLR
Outdoor 802.11ac Wave-2 Wi-Fi Access Point with Phoenix Connector. The GWN7605CLR provides 150-meter coverage range and IP66-rated weatherproof protection to support deployment in any outdoor environment. It includes a…
- 100Client Devices
- 150 MetersRange
- 400Mbps (2x2:2 MIMO)2.4G Throughput
Product details
The GWN7605CLR provides 150-meter coverage range and IP66-rated weatherproof protection to support deployment in any outdoor environment. It includes a built-in Phoenix Connector to power the device through 12-24V wiring, enabling easy installation in locations where PoE and power outlets are not available.
Key features
1.27Gbps aggregate wireless throughput and 2x Gigabit ports
Dual-band 2×2:2 MU-MIMO Wi-Fi 5 with beam-forming technology
Self-power adaptation upon auto detection of PoE or PoE+

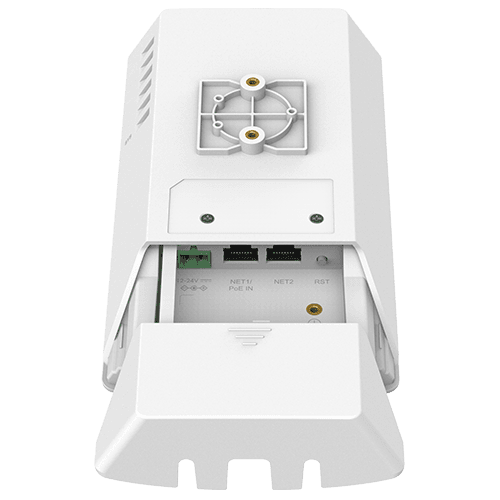

Supports 12V-24V electrical power through the Phoenix Connector
100+ concurrent Wi-Fi client devices
Up to 150-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
2 internal antennas
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 100 |
| Range | 150 Meters |
| Network Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45 |
| PoE/PoE+ | Supports PoE 802.3af/at, Maximum Power Consumption: 10W |
| 2.4G Throughput | 400Mbps (2x2:2 MIMO) |
| 5G Throughput | 867Mbps (2x2:2 MIMO) |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| SSIDs | 16 SSIDs total, 8 per radio |
| Antennas | 2 dual band internal antennas |
| Wi-Fi and Security Systems | Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3 anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense |
| Dimensions | 187mm x 107mm x 45mm |

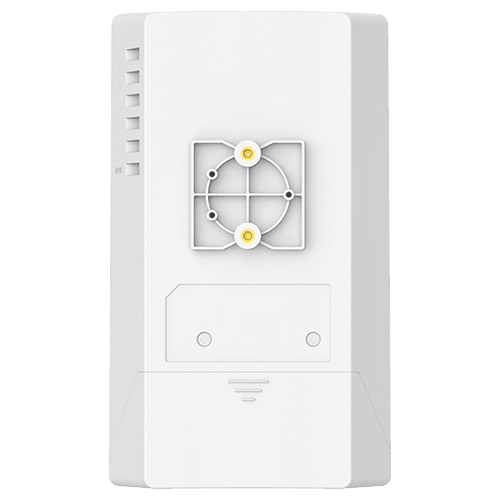

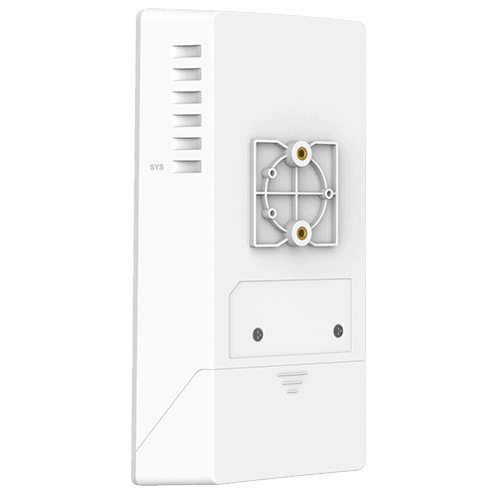

| Mounting | Outdoor metal bar mount or wall mount, kits included |
