Wi-Fi access points
GWN7605LR

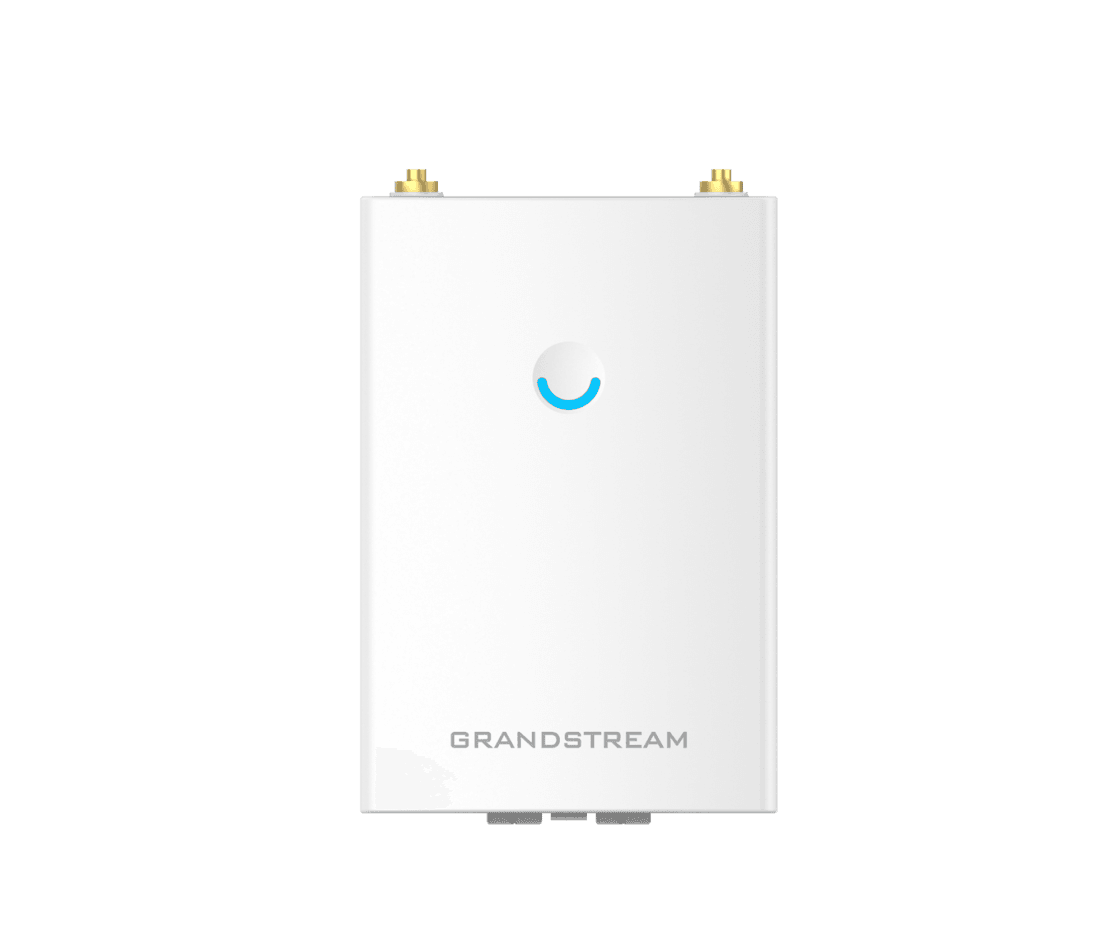

The GWN7605LR is a long-range access point designed to provide next generation network coverage for indoor and outdoor environments.
- 100+Client Devices
- 250 MetersRange
- 300Mbps (2x2:2 MIMO)2.4G Throughput
Product details
The GWN7605LR is a long-range access point designed to provide next generation network coverage for indoor and outdoor environments.
GWN 2x2:2 Weatherproof Long-Range Access Point
Key features
1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports
Dual-band 2×2:2 MUMIMO with beam-forming technology
Self power adaptation upon auto detection of PoE or PoE+
Supports 100+ concurrent Wi-Fi client devices
Up to 250-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibilty of 2 detachable/ changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Doc - GWN7605LR
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 100+ |
| Range | 250 Meters |
| Network Interfaces | 2 x autosensing 10/100/1000 Base-T Ethernet Ports |
| PoE/PoE+ | Supports PoE 802.3af/ 802.3at Max Consumption: 10.16W |
| 2.4G Throughput | 300Mbps (2x2:2 MIMO) |
| 5G Throughput | 867Mbps (2x2:2 MU-MIMO) |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac (Wave-2) |
| SSIDs | 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz) |
| Antennas | 2 dual band external antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures |
| Dimensions | 180.4x180.4x40.8mm |
| Mounting | Wall mount or pole mount |
