Wi-Fi access points
GWN7624

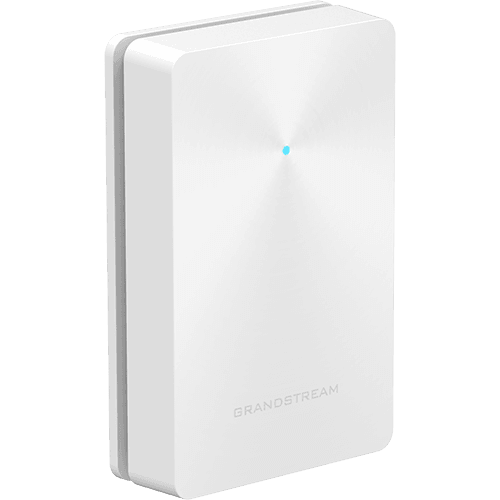

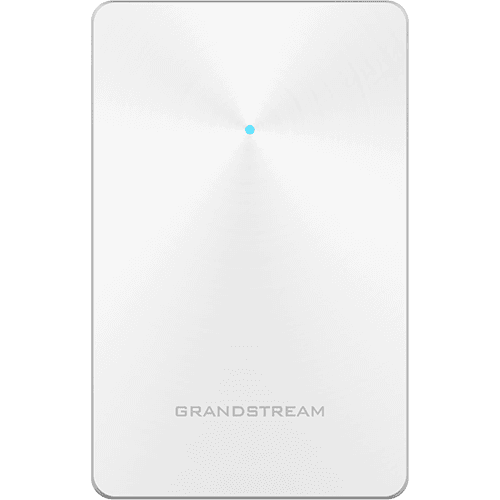

The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.
- 200+Client Devices
- 300Mbps (2x2:2 MIMO)2.4G Throughput
- 1733Mbps (4x4:4 MU-MIMO)5G Throughput
Product details
The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.
Key features
2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
Supports up to 200 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE or PoE+
Embedded controller can manage up to 30 local GWN series APs;
GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
DoC - GWN7624
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 200+ |
| 2.4G Throughput | 300Mbps (2x2:2 MIMO) |
| 5G Throughput | 1733Mbps (4x4:4 MU-MIMO) |
| 6G Throughput | N/A |
| Range | Up to 175 Meters |

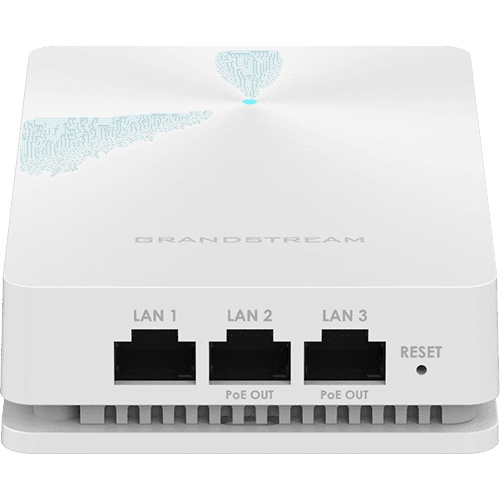

| Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port |
| PoE/PoE+ | Support 802.3az; PoE 802.3af/ 802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| SSIDs | 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz) |
| Antennas | Two 5G & two double frequency internal antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 135x86x38.5mm |
| Mounting | Wall Mountable |
