Wi-Fi access points
GWN7630LR
The GWN7630LR is a long-range access point designed to provide next generation network coverage for indoor and outdoor environments.
- 250+Client Devices
- 300 MetersRange
- 600Mbps (4x4:4 MIMO)2.4G Throughput
Product details
The GWN7630LR is a long-range access point designed to provide next generation network coverage for indoor and outdoor environments.
GWN 4x4:4 Weatherproof Long-Range Access Point
Key features
2.33Gbps wireless throughput and 2x Gigabit wireline ports
Dual-band 4x4:4 MIMO technology
Self power adaptation upon auto detection of PoE/PoE+
Support up to 250+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown

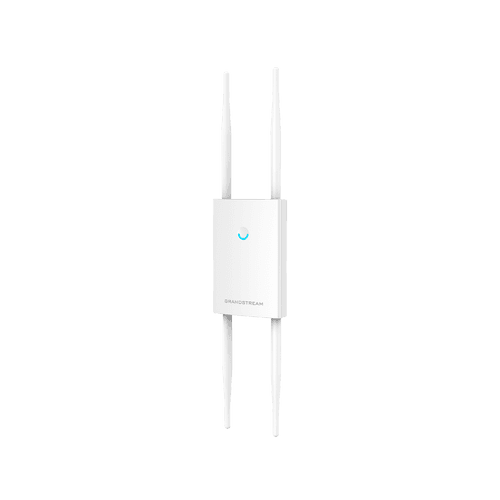

Flexibility of detachable/ changeable antenna for different application scenarios
Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management
DoC - GWN7630LR
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 250+ |
| Range | 300 Meters |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| PoE/PoE+ | Supports PoE 802.3af/ 802.3at; Max Consumption: 16.5W |
| 2.4G Throughput | 600Mbps (4x4:4 MIMO) |
| 5G Throughput | 1733Mbps (4×4:4 MU-MIMO) |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| SSIDs | 32 SSIDs total, 16 per radio (2.4Ghz and 5Ghz) |
| Antennas | 4 detachable/changeable dual-band omnidirectional antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise, WPA3, anti- hacking secure boot and critical data/control lockdown via digital signatures |
| Dimensions | 205.3x205.3x45.9mm |

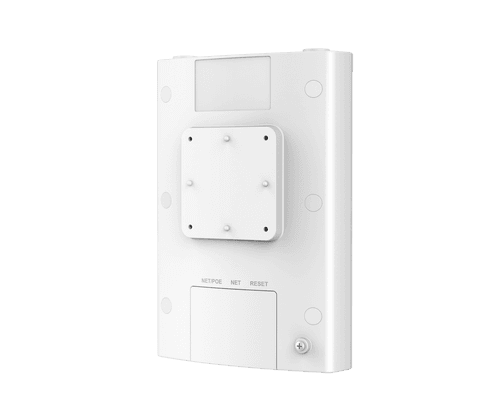

| Mounting | Wall mount or pole mount |
