Wi-Fi access points

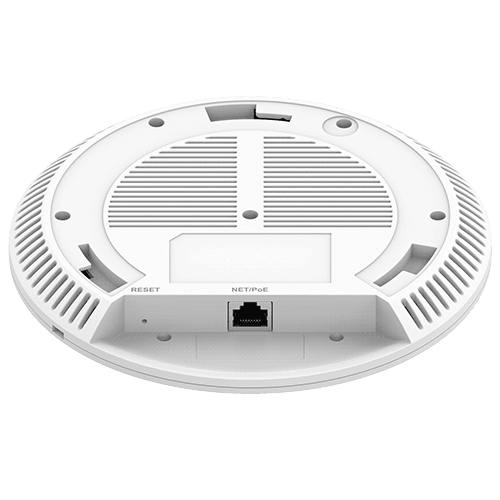

GWN7660E
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and…
- Up to 256Client Devices
- 573.5Mbps (2x2:2 MU-MIMO)2.4G Throughput
- 2.4Gbps (3x3:2 MU-MIMO)5G Throughput
Product details
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band
GWN Enterprise-Grade Wi-Fi 6 Access Point
Key features
3Gbps aggregate wireless throughput and 1 Gigabit wireline port
Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
Up to 175-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto-detection of PoE or PoE+
Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
DoC - GWN7660E
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | Up to 256 |
| 2.4G Throughput | 573.5Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 2.4Gbps (3x3:2 MU-MIMO) |
| 6G Throughput | N/A |
| Range | Up to 175 Meters |
| Network Interfaces | 1x autosensing 10/100/1000 Base-T Ethernet Port |
| PoE/PoE+ | Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 12.95W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio |
| Antennas | 5 individual internal antennas |
| Wi-Fi and Security Systems | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 180.4mm x 180.4mm x 40.8mm |
| Mounting | Indoor wall mount or ceiling mount |
