Wi-Fi access points
GWN7661

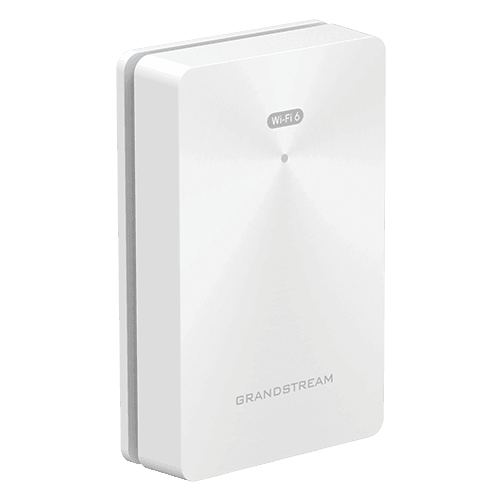

The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit network port…
- 500+Client Devices
- 573.5Mbps (2x2:2 MU-MIMO)2.4G Throughput
- 1201Mbps (2x2:2 MU-MIMO)5G Throughput
Product details
The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit network port with PoE/PoE+.
GWN Wi-Fi 6 In-Wall Access Point
Key features
1.77 Gbps wireless throughput and 4x Gigabit wireline ports
Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology
Supports up to 500+ concurrent Wi-Fi client devices
Self power adaptation upon auto detection of PoE or PoE+
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
DoC - GWN7661
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 500+ |
| 2.4G Throughput | 573.5Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 1201Mbps (2x2:2 MU-MIMO) |
| 6G Throughput | N/A |
| Range | Up to 100 Meters |

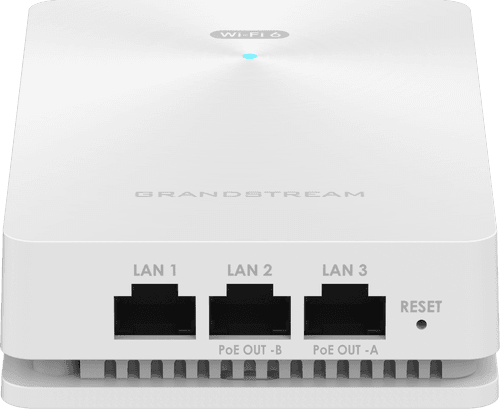

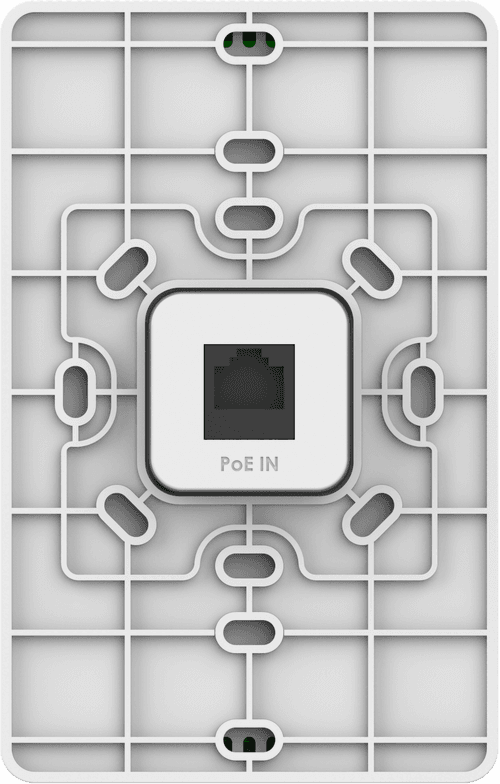

| Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+, 2x 10/100/1000M Ethernet ports with PSE, 1x 10/100/1000M Ethernet port |
| PoE/PoE+ | Supports 802.3az, PoE 802.3af/ 802.3at; PSE Maximum Output Per Port: 6W; Maximum Power Consumption: 25W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Antennas | 4 single band internal antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 135mm(L)x86mm(W)x38.5mm(H); Unit Weight: 185g |
| Mounting | Wall Mountable |
