Wi-Fi access points
GWN7664ELR
High-Performance Outdoor Long-Range 802.11ax Wi-Fi 6 Access Point. The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide…
- 512Client Devices
- 300 MetersRange
- 1147Mbps (4x4:4 MU-MIMO)2.4G Throughput
Product details

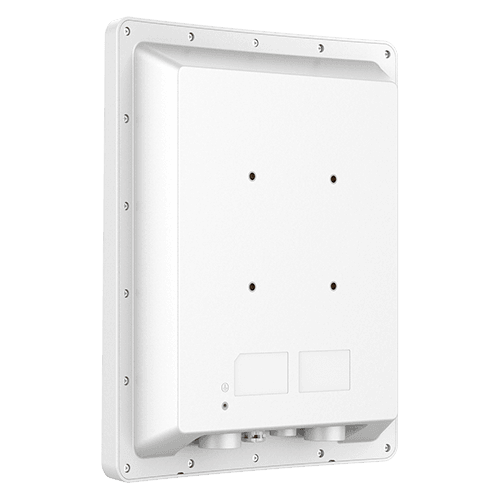

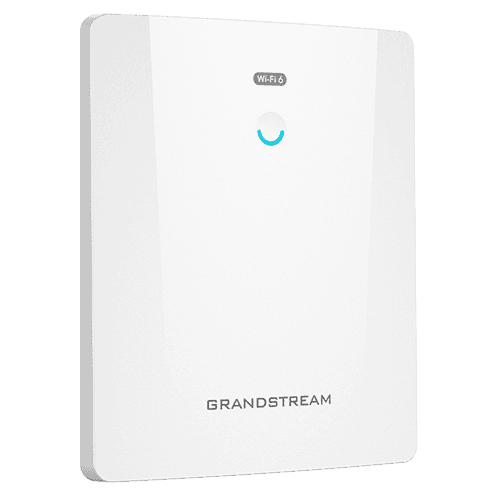

The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.
Key features
6 Gbps aggregate wireless throughput, 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
Dual-band 4x4:4 MU-MIMO with OFDMA technology
Self-power adaptation upon auto-detection of PoE or PoE+
Support 512 concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Flexibility of 8 internal antennas
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
DoC - GWN7664ELR
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 512 |
| Range | 300 Meters |

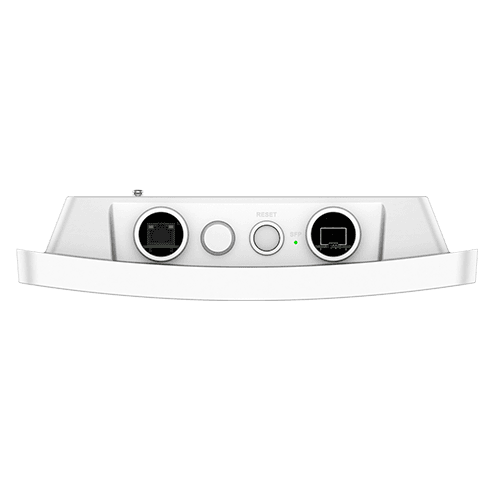

| Network Interfaces | 1x 2.5G RJ45 Port and 1x 2.5G SFP Port |
| PoE/PoE+ | Supports PoE 802.3at; Maximum Power Consumption: 24W |
| 2.4G Throughput | 1147Mbps (4x4:4 MU-MIMO) |
| 5G Throughput | 4.8Gbps (4x4:4 MU-MIMO) |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio |
| Antennas | 8 individual internal antennas |
| Wi-Fi and Security Systems | WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 260mm x 310mm x 59mm |
| Mounting | Wall mount or pole mount, kits included (The mounting kits can be rotated and adjusted by 60°) |
