Wi-Fi access points
GWN7664LR

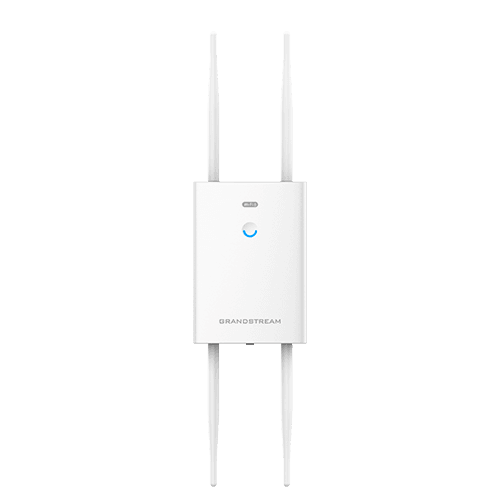

The GWN7664LR is a high-end outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces
- 750+Client Devices
- 300 MetersRange
- 1147Mbps (4x4:4 MIMO)2.4G Throughput
Product details
The GWN7664LR is a high-end outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces
GWN 4x4:4 Wi-Fi 6 Weatherproof Long-Range Access Point
Key features
3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
Dual-band 4x4:4 MU- MIMO with DL/UL OFDMA technology
Self power adaptation upon auto detection of PoE or PoE+
Support 750+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of 4 detachable/changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
DoC - GWN7664LR
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 750+ |
| Range | 300 Meters |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| PoE/PoE+ | Supports PoE 802.3af/802.3at; Max Consumption: 18w |
| 2.4G Throughput | 1147Mbps (4x4:4 MIMO) |
| 5G Throughput | 2400Mbps (4x4:4 MU-MIMO) |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio (2.4 Ghz and 5Ghz) |
| Antennas | 4 detachable/changeable dual band external antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 205.3x205.3x405.9mm |
| Mounting | Wall mount or pole mount |
