Wi-Fi access points

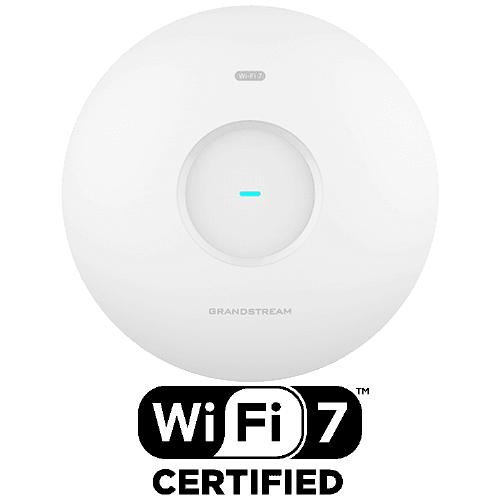

GWN7670
The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.
- Up to 256Client Devices
- 688Mbps (2x2:2 MIMO)2.4G Throughput
- 2882Mbps (2x2:2 MIMO)5G Throughput
Product details
The GWN7670 is a new generation enterprise-grade 802.11be Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.
Key features
3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
Up to 175-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto-detection of PoE+

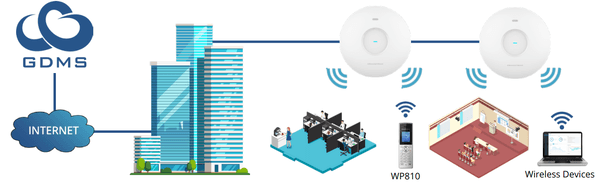

Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | Up to 256 |
| 2.4G Throughput | 688Mbps (2x2:2 MIMO) |
| 5G Throughput | 2882Mbps (2x2:2 MIMO) |
| 6G Throughput | N/A |
| Range | Up to 175 Meters |

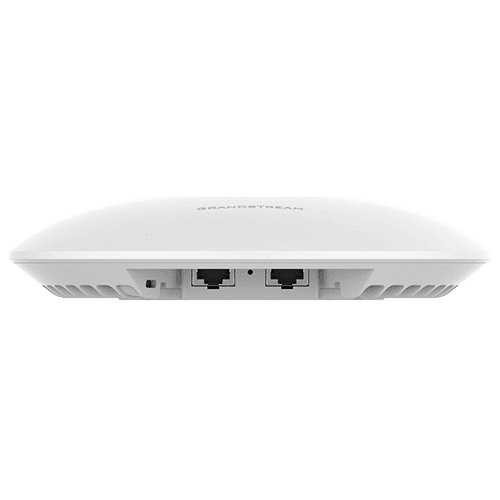

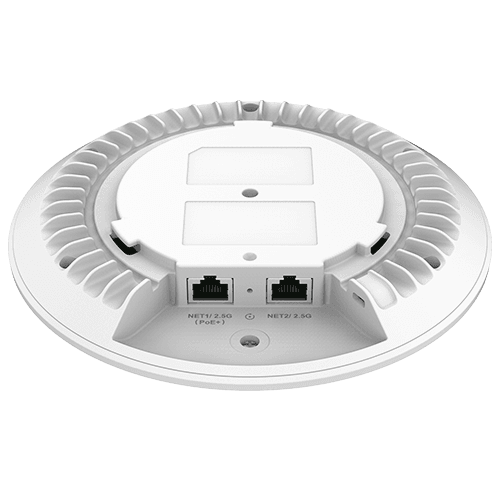

| Network Interfaces | 2x 2.5G Ethernet WAN/LAN |
| PoE/PoE+ | Supports PoE 802.3af/802.3at; Max Consumption: 14.5W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Antennas | 5 single frequency antennas |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| Dimensions | 185mmx185mmx44.5mm |
| Mounting | Indoor wall mount or ceiling mount, kits included |
