Wi-Fi access points
GWN7670ELR
The GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses and features advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA. It is an ideal solution for…
- 512Client Devices
- 350 MetersRange
- 688Mbps (2x2:2 MU-MIMO)2.4G Throughput
Product details

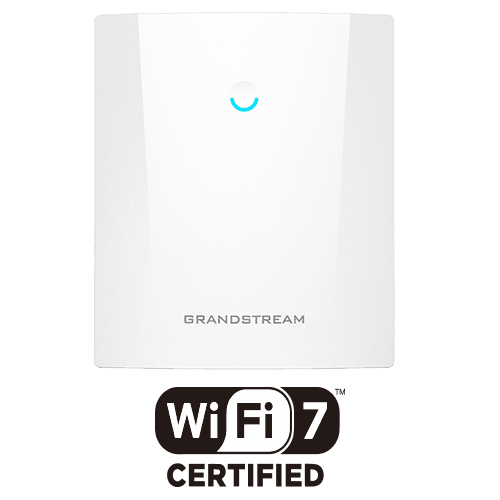

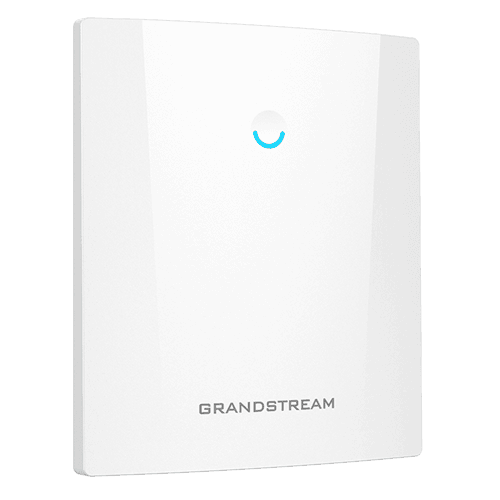

The GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses and features advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA. It is an ideal solution for multi-floor offices, warehouses, parks, hospitals, schools, and more.
Long-Range Dual-Band Wi-Fi 7 Access Point
Key features
Features 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
Delivers reliable connectivity across a vast 350-meter coverage range
The SFP port delivers rock-solid optical transmission across distances of up to 20 km
Connects 512 Wi-Fi client devices simultaneously without compromising speed
Supports up to 1,000 PPSK accounts for secure, individualized user access
Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage
Engineered to withstand harsh outdoor environments with a certified IP67 rating
Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 512 |
| Range | 350 Meters |

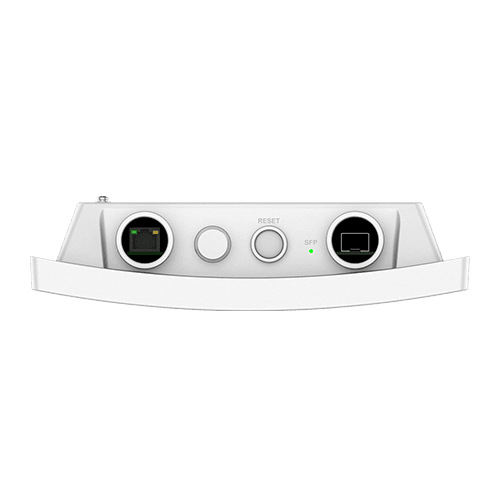

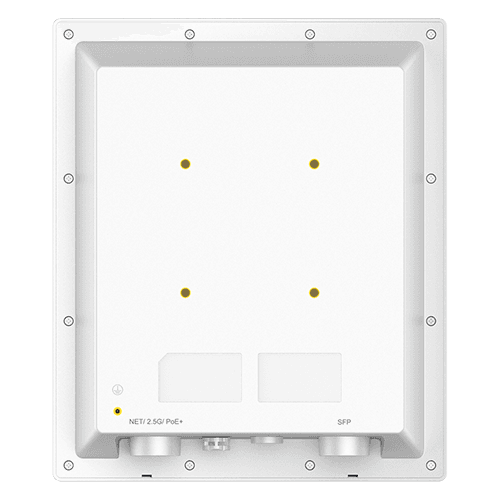

| Network Interfaces | 1× 2.5 GbE RJ45 port (Supports PoE Input), 1× SFP port |
| PoE/PoE+ | Supports PoE 802.3at; Maximum Power Consumption: 16W |
| 2.4G Throughput | 688Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 2882Mbps (3x3:2 MU-MIMO) |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax/be |
| SSIDs | 32 SSIDs total, 16 per radio |
| Antennas | 5 single-frequency antennas |
| Wi-Fi and Security Systems | Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense |
| Dimensions | 270mm × 230mm × 57mm |

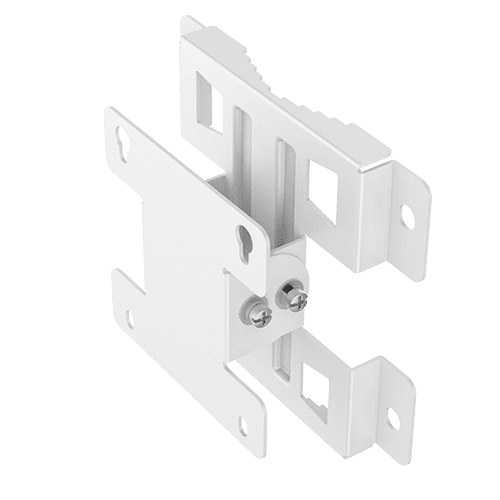

| Mounting | Wall mount or pole mount, kits included |
