Wi-Fi access points
GWN7670LR
The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.
- 256Client Devices
- 350 MetersRange
- 688Mbps (2x2:2 MIMO)2.4G Throughput
Product details
The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.
Long-Range Dual-Band Wi-Fi 7 Access Point/Bridge
Key features
3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port
Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology
Up to 350-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
Self-power adaptation upon auto-detection of PoE+
Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 256 |
| Range | 350 Meters |

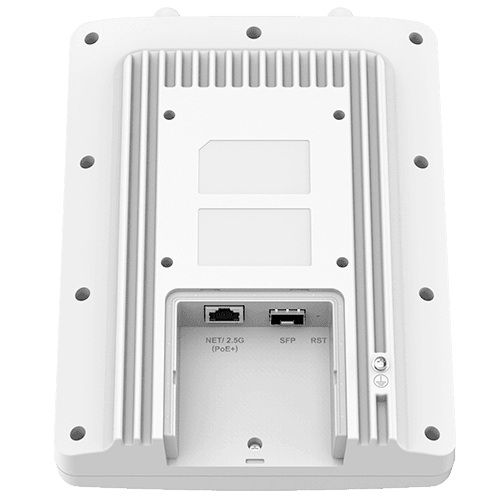

| Network Interfaces | 1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input 1x 2.5G SFP |
| PoE/PoE+ | Supports PoE 802.3at; Maximum Power Consumption: 15.5W |
| 2.4G Throughput | 688Mbps (2x2:2 MIMO) |
| 5G Throughput | 2882Mbps (2x2:2 MIMO) |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax/be |
| SSIDs | 32 SSIDs total, 16 per radio |
| Antennas | 2.4G: Directional internal 8dBi/External omni 3.5dBi 5G: Directional internal 13.5dBi/External omni 3.5dBi BT: 5.0dBi |
| Wi-Fi and Security Systems | Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense |
| Dimensions | 223.2mm x 169.9mm x 53.9mm |
| Mounting | Wall mount or pole mount, kits included |
