Wi-Fi access points

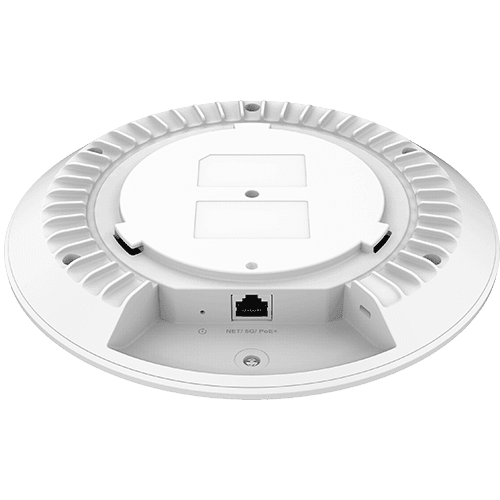

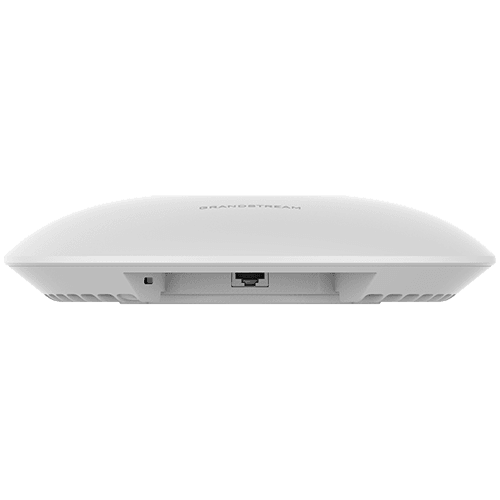

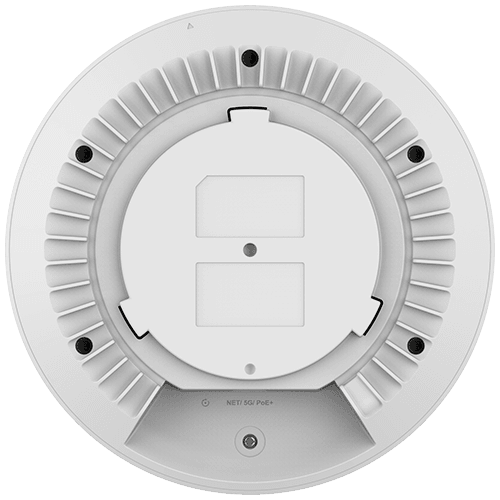

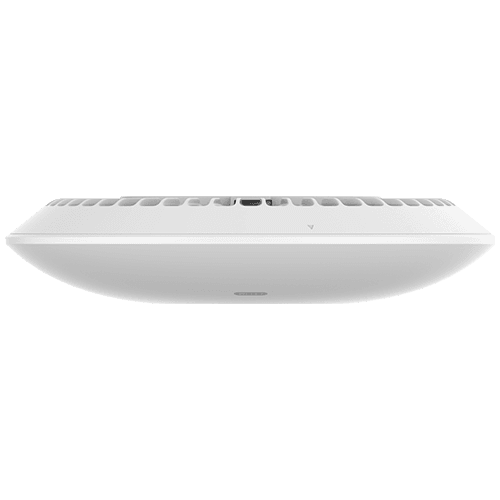

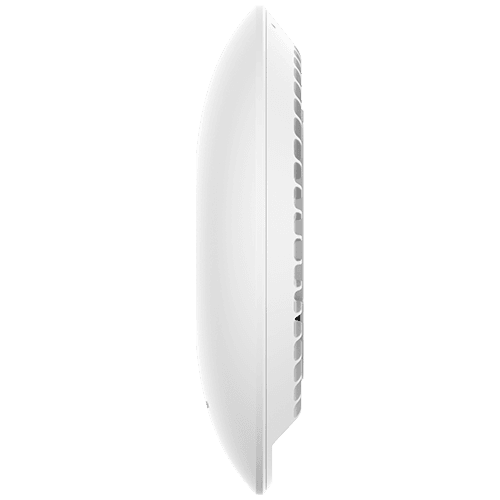

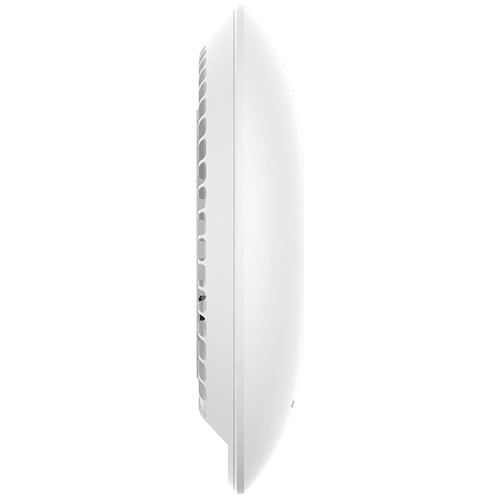

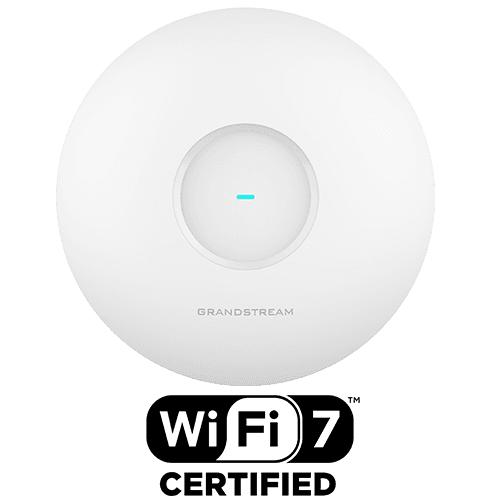

GWN7672L
The GWN7672L is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point, offering 2×2:2 MU-MIMO alongside DL/UL Enhanced OFDMA technology. It is an ideal solution for medium wireless network deployments with…
- 384Client Devices
- 688Mbps (2x2:2 MU-MIMO)2.4G Throughput
- 4320Mbps (2x2:2 MU-MIMO)5G Throughput
Product details
The GWN7672L is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point, offering 2×2:2 MU-MIMO alongside DL/UL Enhanced OFDMA technology. It is an ideal solution for medium wireless network deployments with medium-to-high user density.
Key features
Features 11 Gbps aggregate wireless throughput and 5 Gbps wired throughput
Integrates Wi-Fi 7 Certified connectivity with tri-band 2×2:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
Delivers reliable connectivity across a vast 175-meter coverage range
Connects 384 Wi-Fi client devices simultaneously without compromising speed
Supports up to 2,500 PPSK accounts for secure, individualized user access
Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 384 |
| 2.4G Throughput | 688Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 4320Mbps (2x2:2 MU-MIMO) |
| 6G Throughput | 5765Mbps (2x2:2 MU-MIMO) |
| Range | Up to 175 Meters |
| Network Interfaces | 1 × 5 GbE RJ45 port |
| PoE/PoE+ | Supports PoE 802.3at; Maximum Power Consumption: 22W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| SSIDs | 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz) |
| Antennas | 6 single-frequency antennas |
| Wi-Fi and Security Systems | Open System, OSEN, WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures |
| Dimensions | Ø220 mm × 48.5 mm |
| Mounting | Indoor Wall Mount, Ceiling Mount, and Junction Box Mount |
