Wi-Fi access points

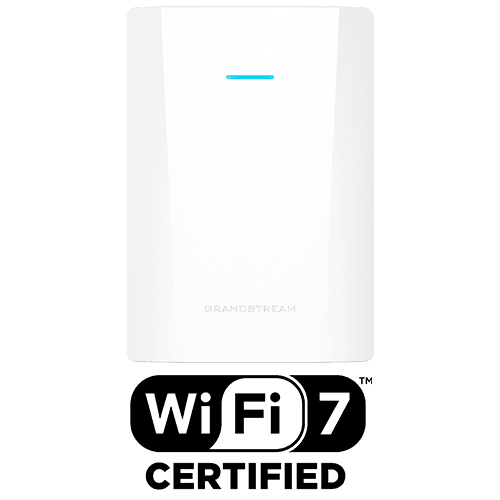

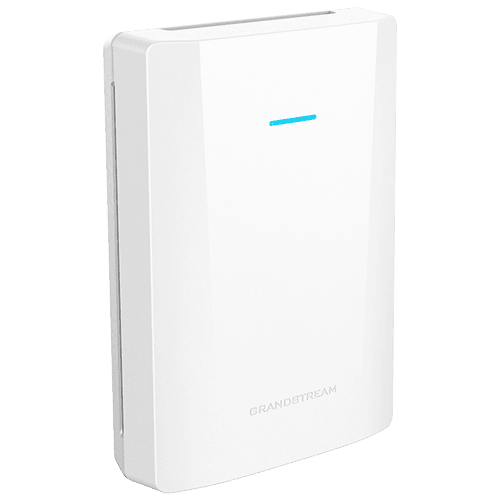

GWN7672WM
The GWN7672WM is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point, offering 2×2:2 MU-MIMO alongside DL/UL Enhanced OFDMA technology. It is an ideal solution for medium wireless network deployments with…
- 384Client Devices
- 688Mbps (2x2:2 MU-MIMO)2.4G Throughput
- 4320Mbps (2x2:2 MU-MIMO)5G Throughput
Product details
The GWN7672WM is a powerful enterprise-grade BE11000 tri-band Wi-Fi 7 access point, offering 2×2:2 MU-MIMO alongside DL/UL Enhanced OFDMA technology. It is an ideal solution for medium wireless network deployments with medium-to-high user density.
Wall-Mounted Tri-Band Wi-Fi 7 Access Point
Key features
Features 11 Gbps aggregate wireless throughput and 5 Gbps wired throughput
Integrates Wi-Fi 7 Certified connectivity with tri-band 2×2:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
Delivers reliable connectivity across a vast 175-meter coverage range
Connects 384 Wi-Fi client devices simultaneously without compromising speed
Advanced QoS guarantees flawless performance for real-time and low-latency applications

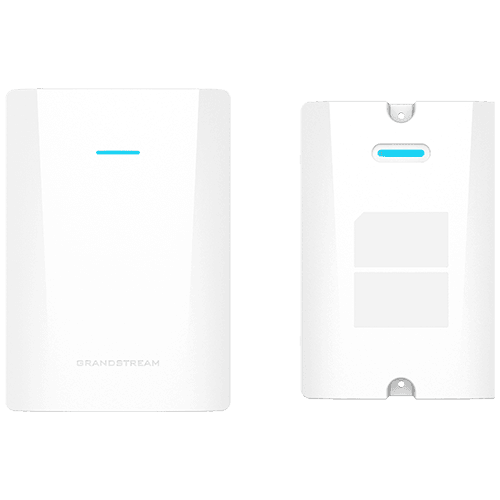

Offers flexible mounting options, including junction box, in-wall, and on-wall installation
Enterprise-level security including anti-hacking secure boot, digital signature lockdowns for critical data, and unique Schools security certificates with random default passwords for every device
Supports up to 2,500 PPSK accounts for secure, individualized user access

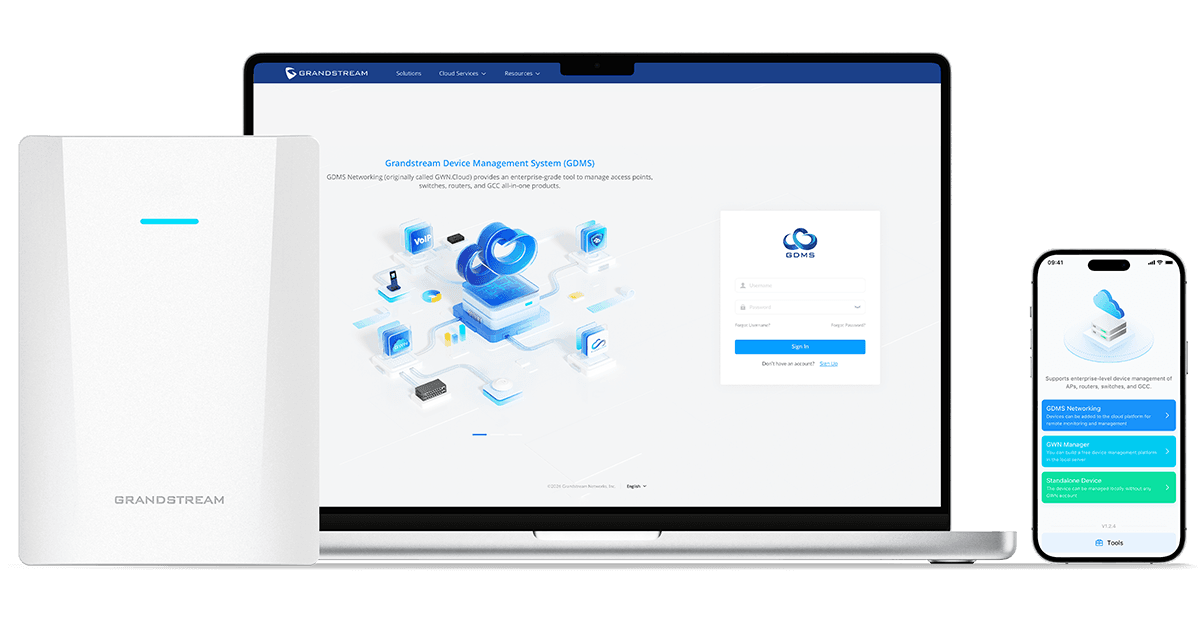

Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Client Devices | 384 |
| 2.4G Throughput | 688Mbps (2x2:2 MU-MIMO) |
| 5G Throughput | 4320Mbps (2x2:2 MU-MIMO) |
| 6G Throughput | 5765Mbps (2x2:2 MU-MIMO) |
| Range | Up to 175 Meters |

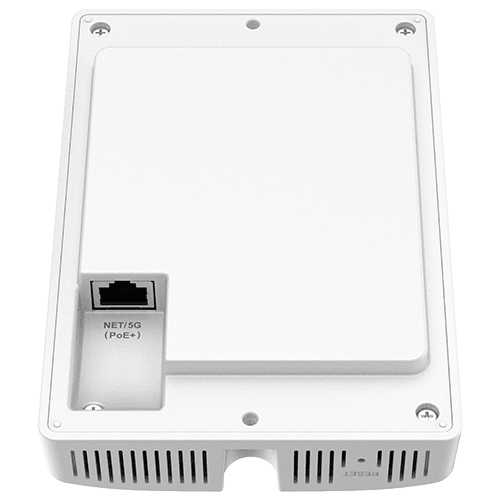

| Network Interfaces | 1 × 5 GbE RJ45 port (Supports PoE Input) |
| PoE/PoE+ | Supports PoE 802.3at; Maximum Power Consumption: 25.5W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| SSIDs | 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz) |
| Antennas | 7 single frequency antennas |
| Wi-Fi and Security Systems | Open System, OSEN, WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3, Unique Security Certificate and Random Default Password per Device, Anti-Hacking Secure Boot, Critical Data and Control Lockdown via Digital Signatures |
| Dimensions | 168.95 mm × 118.95 mm × 39.1 mm |

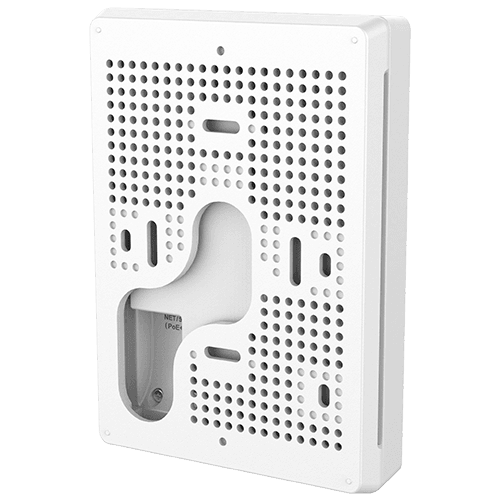

| Mounting | In-Wall Mount, On-Wall Mount and Junction Box Mount |
