GWN7700(P&PA) Series
GWN7700(P&PA) Series. The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.
Network switches
GWN7700M Series
GWN7700M Series. The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
- 5Gigabit Ports
- 45GbpsSwitching Capability
- 9KBJumbo Frame
Product details
The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
Unmanaged 2.5G Multi-Gigabit Network Switches
Key features

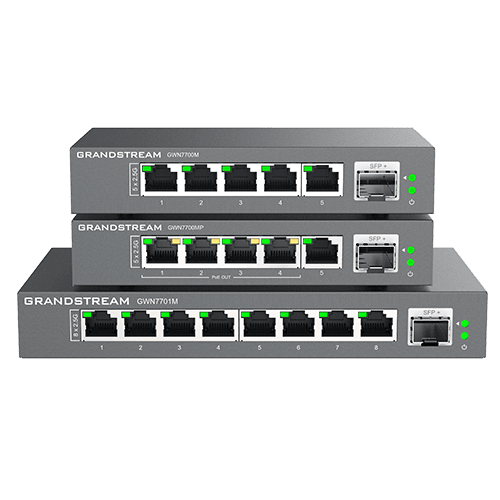

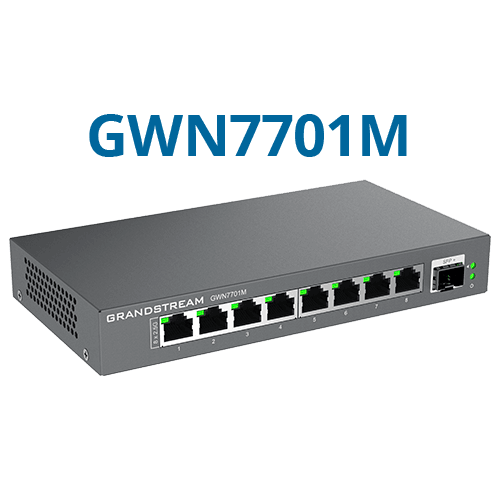

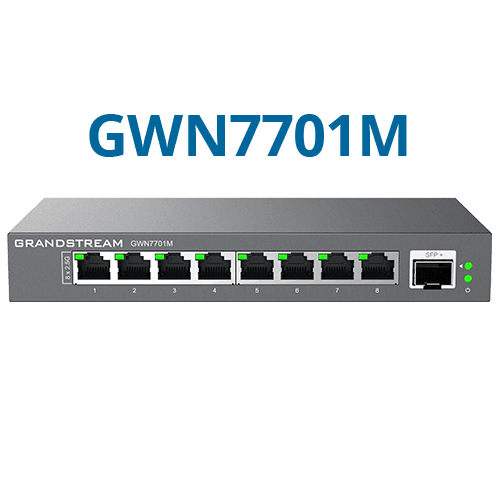

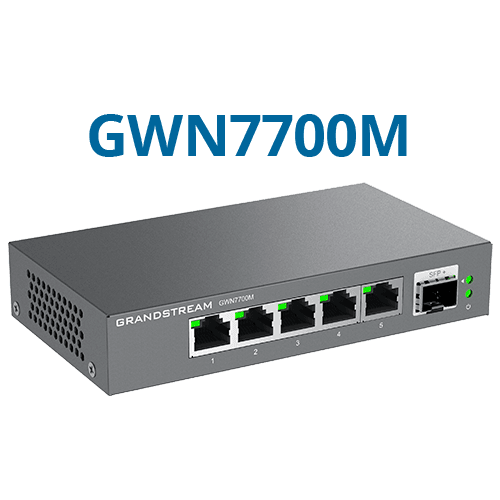

3 Models - GWN7700M, GWN7700MP, and GWN7701M
5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
LED Indicators; Per port: Link/Activity/Speed Per device: Power
Auto MDI/MDIX crossover for all ports
Whisper Quiet: fanless
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Green technology reduces power consumption
QoS - Supports Default Strict Priority when present
DoC - 1.25G Fiber Port Module
DoC - 10G Fiber Port Module
DoC - GWN7700M
DoC - GWN7700MP
DoC - GWN7701M
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq |
| Gigabit Ports | 5 |
| PoE Ports (PoE Models) | N/A |
| Port Features | 5× 100/1000/2500Mbps RJ45 Ports 1× SFP+ Fiber Port AUTO Negotiation AUTO MDI/MDIX |
| PoE Configuration (PoE Models) | N/A |
| Switching Capability | 45Gbps |
| Jumbo Frame | 9KB |
| Enclosure | Metal |
