GWN7710R

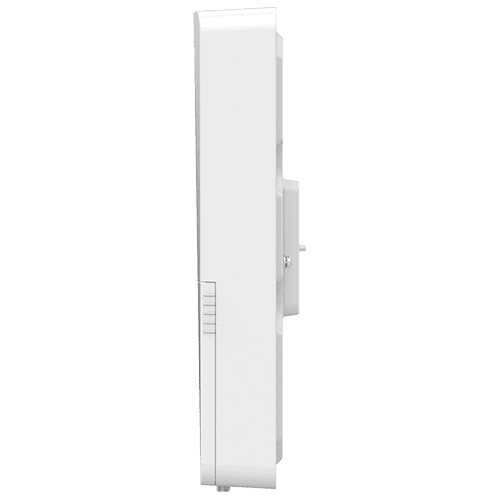

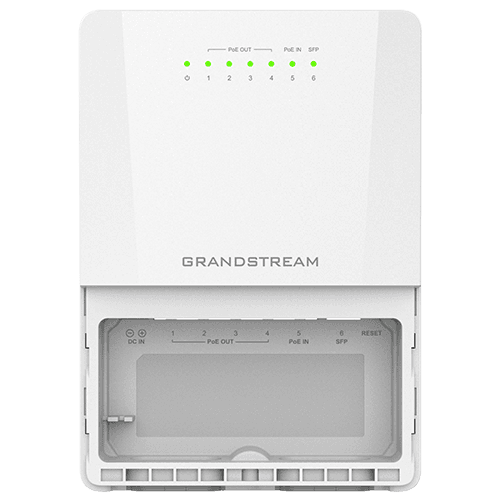

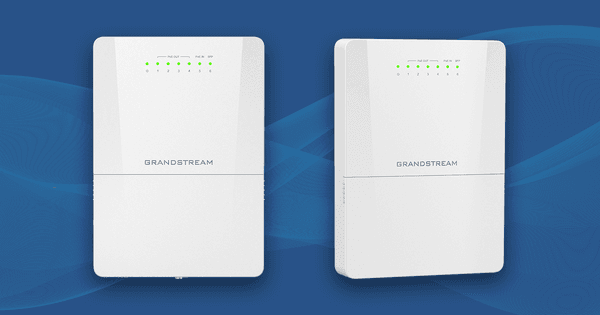

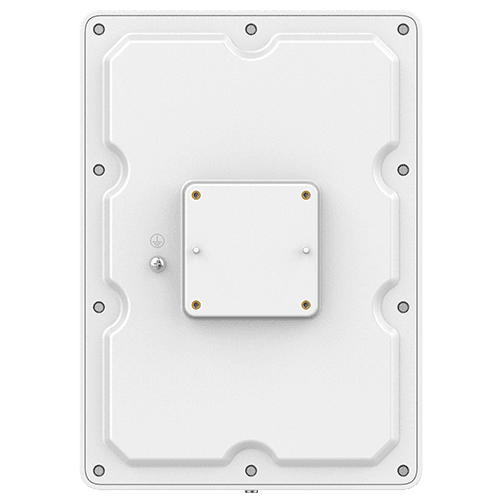

The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.
- 6GIGABIT PORTS
- 5POE PORTS (POE MODELS)
- 15GbpsSWITCHING CAPACITY
Product details
The GWN7710R is a 6-Port (5GE+1SFP) outdoor lite managed PoE switch that features an IP66-rated waterproof and dustproof casing to protect against harsh weather conditions, including rain, snow, and high temperatures.
6-Port Outdoor L2 Lite Managed Switch
Key features

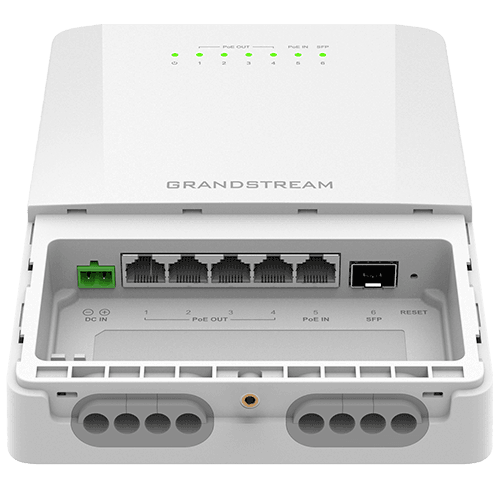

5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
IEEE 802.3 at/af or 24V/48V DC passive PoE out,Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
SFP Fiber Port for long-distance transmission
DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
Built-in QoS allows for prioritization of network traffic
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| STANDARDS AND PROTOCOLS | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| GIGABIT PORTS | 6 |
| POE PORTS (POE MODELS) | 5 |
| PORT FEATURES | 5x Gigabit Ethernet Ports 1x 1G/2.5G SFP Port |
| PoE CONFIGURATION (PoE MODELS) | Standard PoE output Mode: Port 1 - Port 4 up to 30W on each PoE port; Passive PoE output Mode: Port 1: 4-pair 48V DC up to 60W or 4-pair 24V DC up to 30W; Port 2 - Port 4: 2-pair 48V DC up to 30W or 2-pair 24V DC up to 15W; Note: 4-Pair: Powered on pins: 1,2,4,5(+),3,6,7,8(-); 2-Pair: Powered on pins: 4,5(+),7,8(-) |

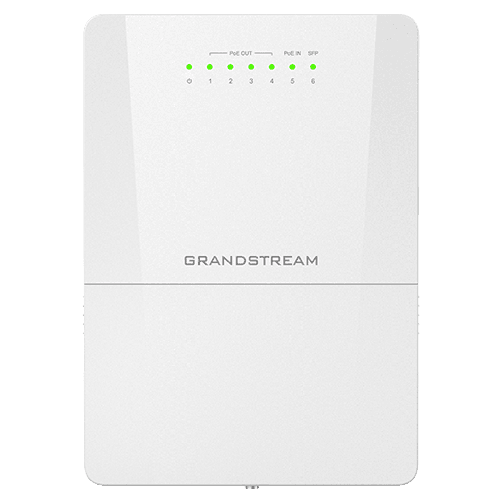

| LED INDICATORS | Per device System on : Green; Per Ethernet port Link/Activity: Green; Per Passive PoE out port 48VDC: Orange; Per Passive PoE out port 24VDC: Blue; Support LED indicator switch |
| SWITCHING CAPACITY | 15Gbps |
| JUMBO FRAME | 2K, 3K, 4K, 5K, 6K, 7K, 8K, 9K, 12K, 15K |
| ENCLOSURE | Metal |
