GWN7721 Series
Layer 2 Lite Managed Multi-Gigabit Network Switches. The GWN7721 Layer 2 Lite Managed Switch Series delivers robust, high-performance networking tailored for small to medium businesses and provide flawless connectivity…
- 10GIGABIT PORTS
- 9POE PORTS (POE MODELS)
- 80GbpsSWITCHING CAPACITY
Product details
The GWN7721 Layer 2 Lite Managed Switch Series delivers robust, high-performance networking tailored for small to medium businesses and provide flawless connectivity and advanced features needed to build a truly scalable, secure, and intelligent network
Key features

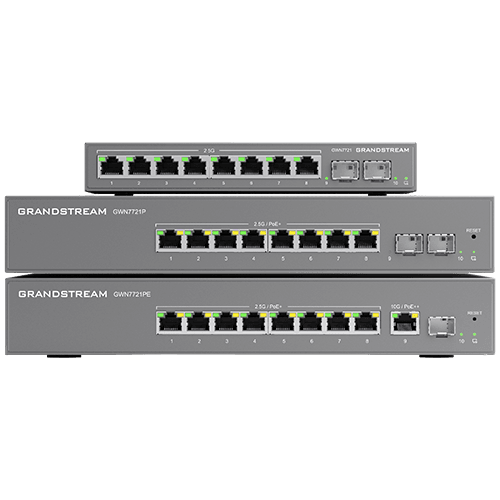

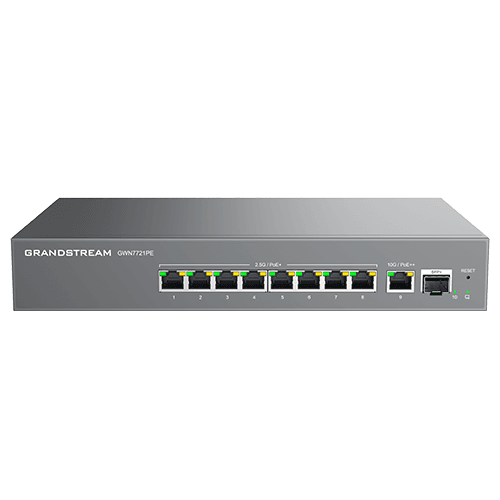

GWN7721PE: 8x 2.5G Ethernet Port, 1x 10G Ethernet Port, and 1x 10G SFP Port
GWN7721 and GWN7721P: 8x 2.5G Ethernet ports and 2x 10G SFP+ ports
Available ports and power levels vary by model, including PoE, PoE+, and PoE++
Includes Loop Detection, Cable Testing, and Port Mirroring for simplified network troubleshooting
STP and RSTP offer faster convergence, ensuring network stability and link load balance
Provides remote monitoring, fault diagnosis, as well as configuration, SMB, and management via SNMP
Built-in QoS enables the switch series to manage and prioritize different types of traffic
Supports convenient and smart configuration through the local webpage, GWN Manager, and GDMS

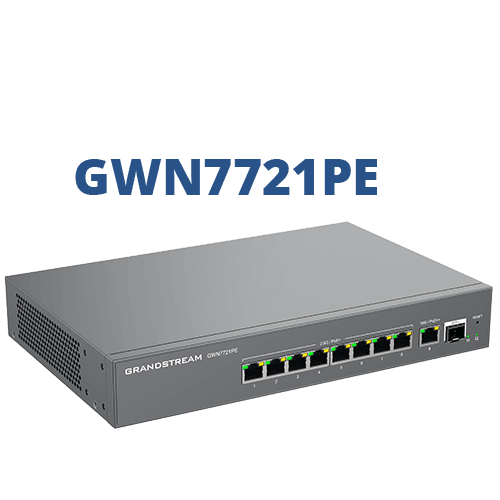

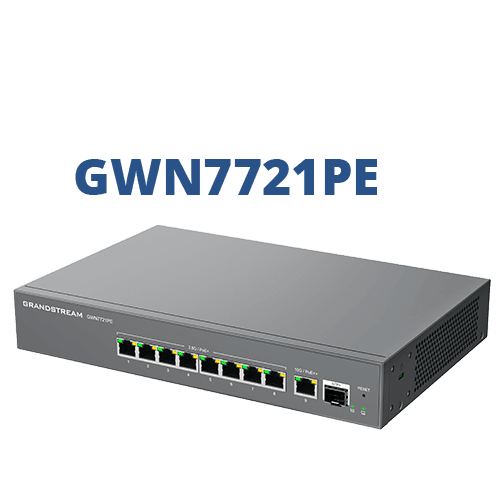

Newly added model to the series - GWN7721PE
Specifications
| Specification | Value |
|---|---|
| Specifications | |
| STANDARDS AND PROTOCOLS | IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| GIGABIT PORTS | 10 |
| POE PORTS (POE MODELS) | 9 |
| PORT FEATURES | 8x 2.5 Gigabit Ethernet Ports, 1x 10 Gigabit Ethernet Port, and 1x SFP+ Port |
| PoE CONFIGURATION (PoE MODELS) | Port 1-9 support 802.3af/at/bt standard PoE out: 30W (Port 1-8) and 90W (Port 9), max total PoE output power is 130W |
| LED INDICATORS | 1 tri-color LED for device tracking and status indication, 10 Green LEDs for data transferring, and 9 yellow LEDs for PoE power supply |
| SWITCHING CAPACITY | 80Gbps |
| JUMBO FRAME | 1518, 2048, 3072, 4096, 5120, 6144, 7168, 8192, 9216 |
| ENCLOSURE | Metal |
