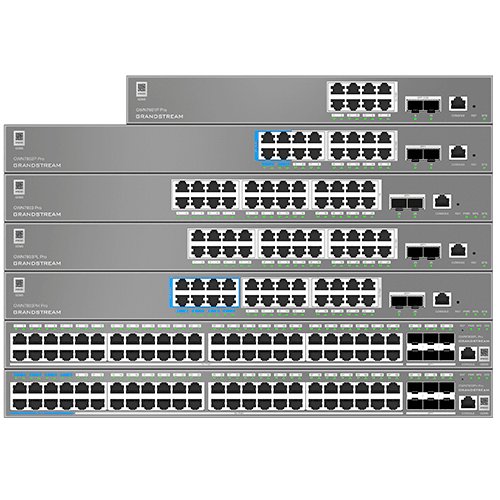

GWN7800 Pro Series
Enterprise Layer 2++ Managed Network Switches. The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++…
- 24Gigabit Ethernet Ports
- 2Gigabit SFP+ Ports
- 24PoE Ports (PoE Models Only)
Product details
The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.
Key features
All models include high-speed SFP or SFP+ ports
8, 16, 24 or 48 Gigabit Ethernet ports
Offers double the RAM and CPU of the GWN7800 Series
Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
All models are available now
Specifications
| Specification | Value |
|---|---|
| specs | |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x |
| Gigabit Ethernet Ports | 24 |
| Gigabit SFP+ Ports | 2 |
| PoE Ports (PoE Models Only) | 24 |
| PoE Standards | IEEE 802.3af/at |
| Total PoE Output Power (PoE Models Only) | 250W (30W per port) |
| Total Non Blocking Throughput | 44Gbps |
| Switching Capability | 88Gbps |
| Forwarding Rate | 65.472Mpps |
| Switching | Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending) ERPS(pending), 16K MAC addresses |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet Identity authentication, including 802.1X and MAC authentication AAA authentication, including RADIUS, TACACS Storm control Port isolation Port security, sticky MAC address, filtering invalid MAC addresses IP/IPv6 source guard, DoS attack prevention, ARP inspection, CPU protection Loop protection, including port loopback detection, BPDU protection, root protection, and loopback protection Kensington Security Slot (Kensington Lock) support Firmware signature |
